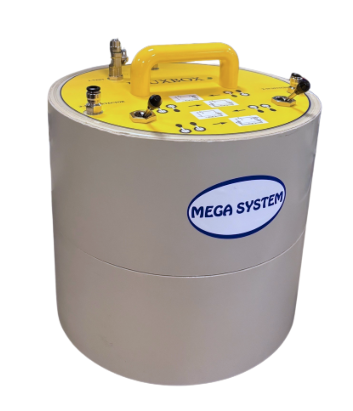

Fluxbox

The Fluxbox allows the monitoring of various diffuse gaseous emissions such as biogas, toxic gasses (H₂S, NH₃, H₂, etc.) and VOCs in contaminated sites.
The system is created in compliance with the English guidelines on monitoring landfill gas surface emissions (Guidance on monitoring landfill gas surface emissions, LFTGN 07).

It consists of an accumulation chamber with a known volume and surface area, probe positioning ring, as well as switch valves for zeroing and automatic calibration operations of the detector.

Dimensions: 430 x 370 x 285 mm
Weight: 5 Kg
Volume: approximately 25 L
Contact surface: 784 cm²
