US-EPA METHODS

Dust sampling in ducts with the presence of humidity

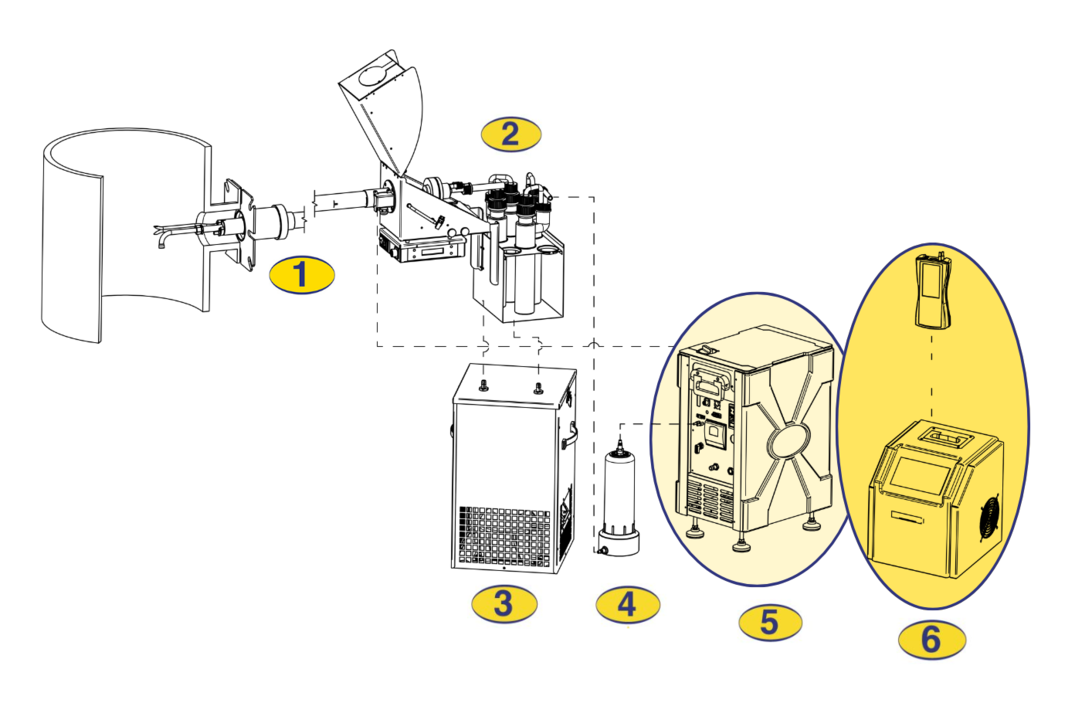

US-EPA Method 5 – Determination of particulate matter emissions from stationary sources

LEGEND:

  1. X1 HEATED PROBE complete with sliding device, Darcy tube, glass sampling tube and nozzles, Ø 47 mm glass filter holder (inside the heated box)
  2. Tank with Impingers specifically for EPA Method 5
  3. ARTIK XP with connections to the tank (in/out)
  4. PVC Absorber for silica gel
  5. SOLUTION A: Automatic isokinetic sampler APIS PLUS
  6. SOLUTION B: isokinetic sampler ASTER with automatic
    processor LOTUS

PCDD/PCDF

US-EPA Method 8 – Determination of sulfuric acid mist and sulfur dioxide emissions from stationary sources

LEGEND:

  1. X1 HEATED PROBE complete with sliding device, Darcy tube, glass sampling tube and nozzles
  2. Tank with Impingers specifically for EPA Method 8 and Ø 47 mm glass filter holder (outside the heated box)
  3. ARTIK XP with connections to the tank (in/out)
  4. PVC Absorber for silica gel
  5. SOLUTION A: Automatic isokinetic sampler APIS PLUS
  6. SOLUTION B: isokinetic sampler ASTER with automatic
    processor LOTUS

Dust sampling in ducts with little or no humidity

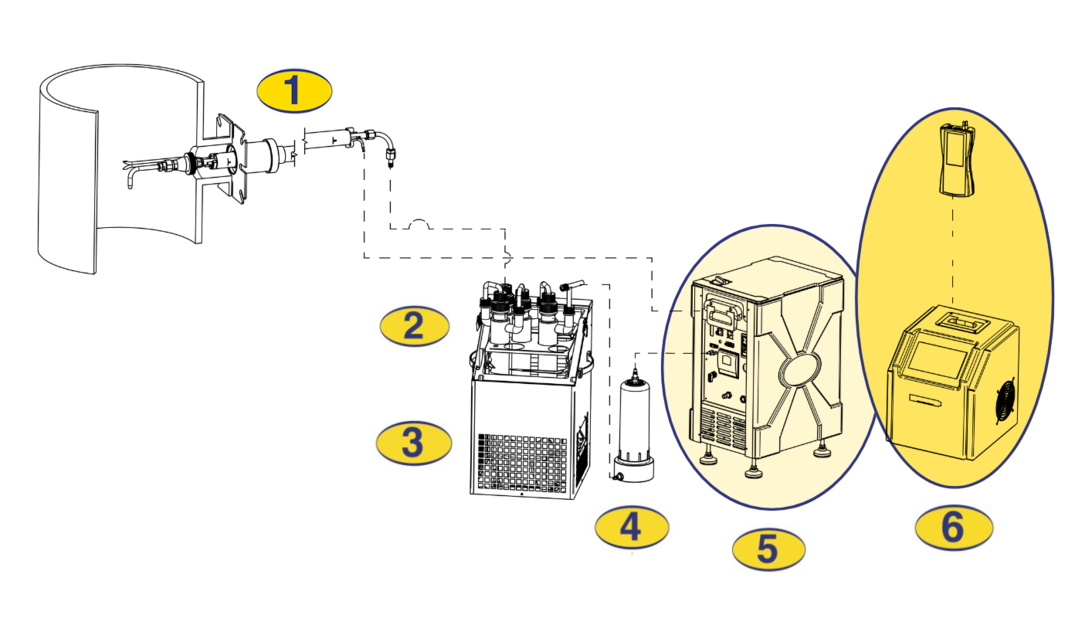

US-EPA Method 17 – Determination of Particulate Matter Emissions From Stationary Sources

LEGEND:

  1. MONOTUBE PROBE complete with sliding device, Darcy tube, stainless steel sampling tube and nozzles, Ø 47 mm stainless steel filter holder (inside the chimney)
  2. Impingers specifically for EPA Method 17
  3. ARTIK XP
  4. PVC Absorber for silica gel
  5. SOLUTION A: Automatic isokinetic sampler APIS PLUS
  6. SOLUTION B: isokinetic sampler ASTER with automatic
    processor LOTUS

PCDD/PCDF

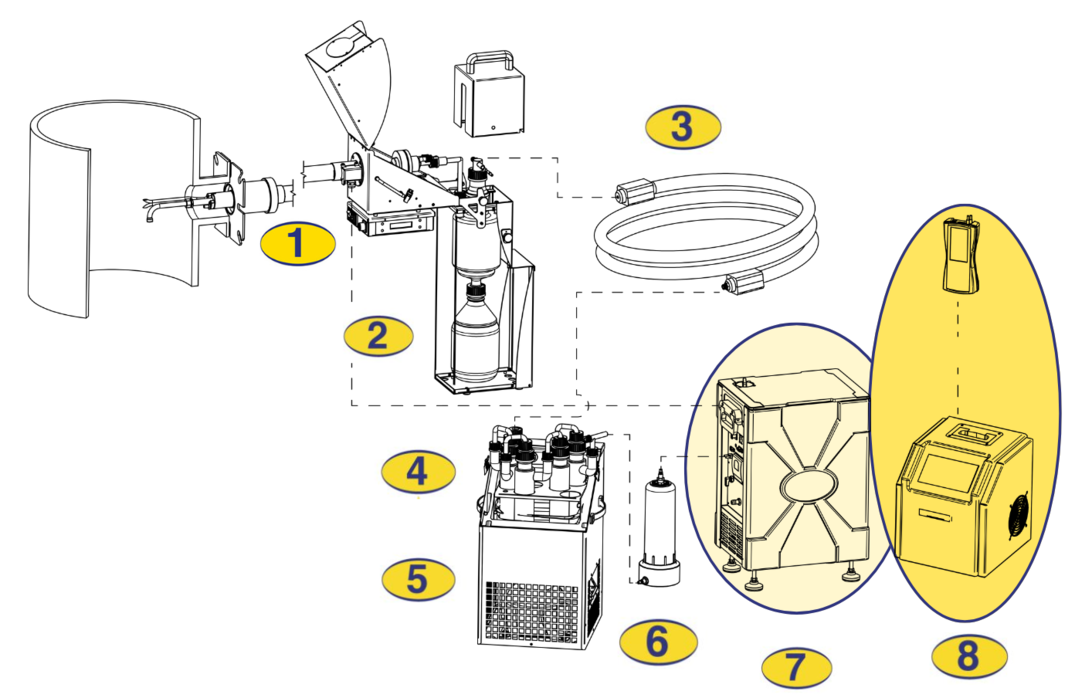

US-EPA Method 23 – Determination of Polychlorinated Dibenzo-p-Dioxins and Polychlorinated Dibenzofurans From Stationary Sources

LEGEND:

  1. X1 HEATED PROBE complete with sliding device, Darcy tube, glass sampling tube and nozzles, Ø 47 mm glass filter holder (inside the heated box)
  2. X1-CODENSER complete with glass moisture collector, heat exchanger and PUF/XAD2 cartridge holder with specific EPA Method 23 connections
  3. Heated Teflon Tube
  4. Impingers specifically for EPA Method 23
  5. ARTIK XP
  6. PVC Absorber for silica gel
  7. SOLUTION A: Automatic isokinetic sampler APIS PLUS
  8. SOLUTION B: isokinetic sampler ASTER with automatic
    processor LOTUS

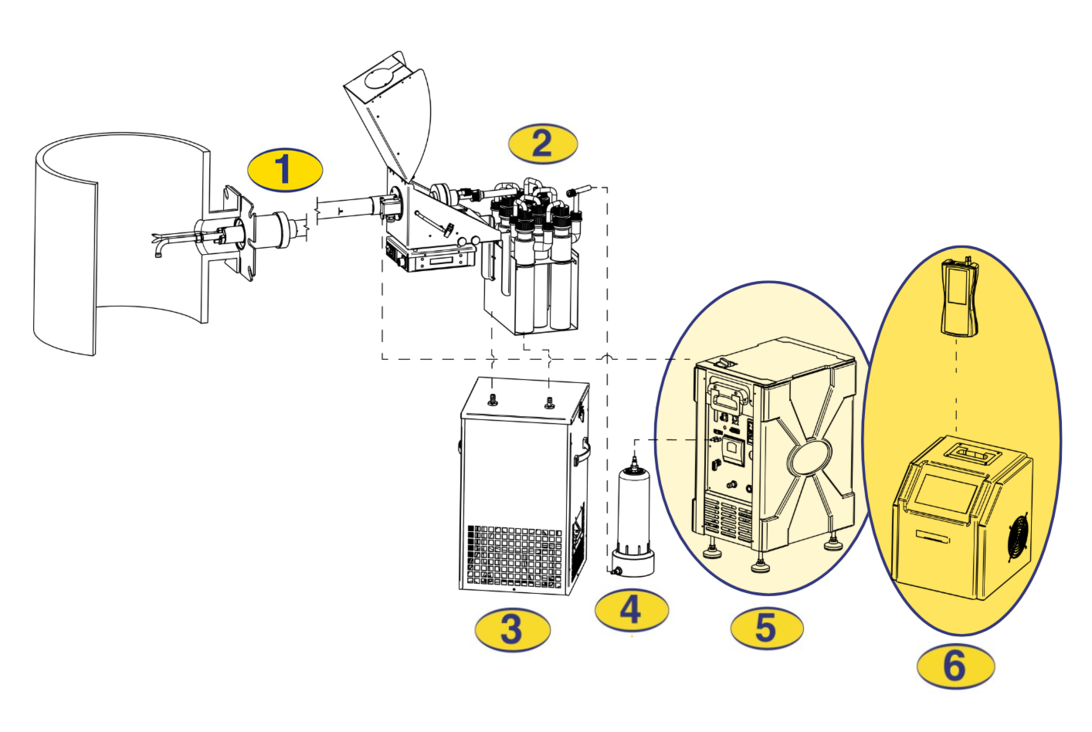

Metals

LEGEND:

  1. X1 HEATED PROBE complete with sliding device, Darcy tube, glass sampling
    tube and nozzles, Ø 47 mm glass filter holder (inside the heated box)
  2. Tank with Impingers specifically for EPA Method 29
  3. ARTIK XP with connections to the tank (in/out)
  4. PVC Absorber for silica gel
  5. SOLUTION A: Automatic isokinetic sampler APIS PLUS
  6. SOLUTION B: isokinetic sampler ASTER with automatic
    processor LOTUS

US-EPA Method 29 – Determination of metals emissions from stationary sources
