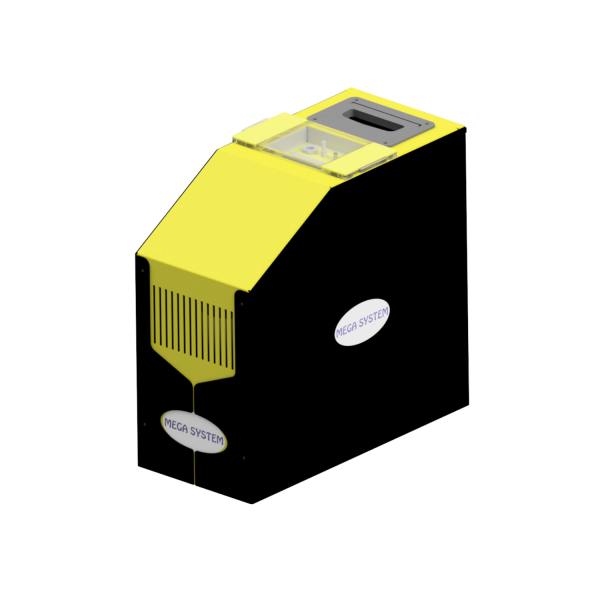

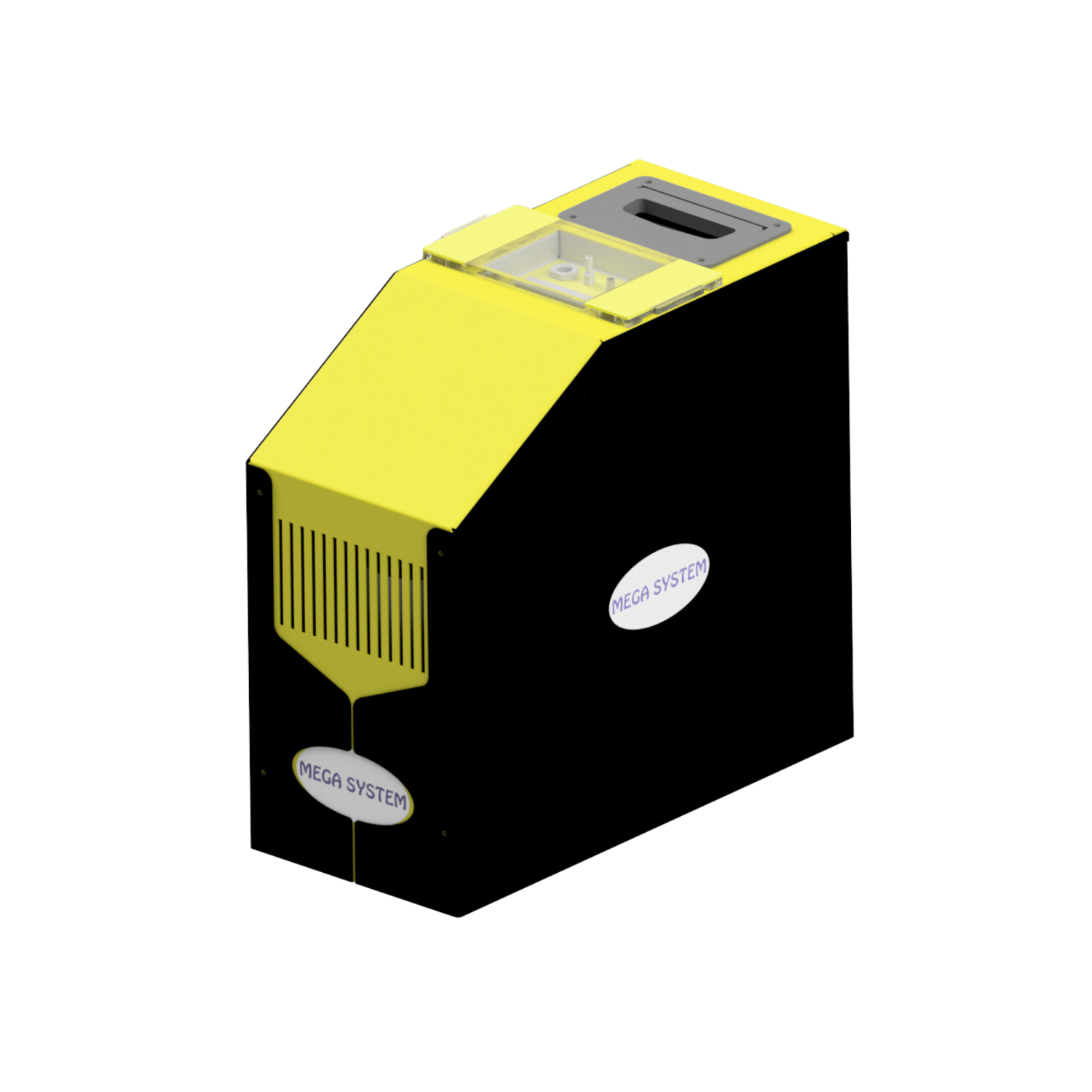

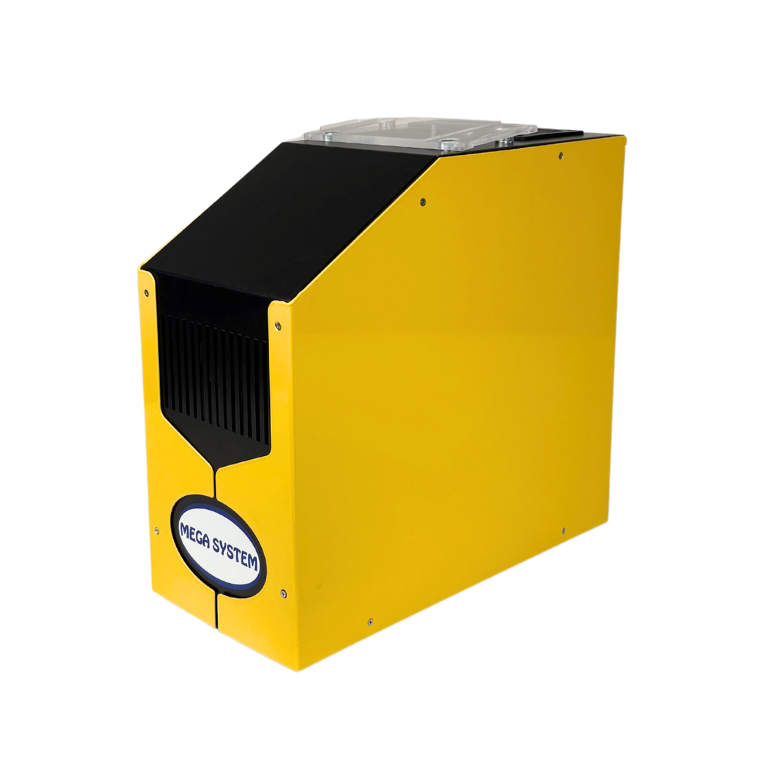

Artik Air

Artik Air is a gas conditioning system designed for emission sampling, optimized for use with combustion gas analyzers.

Key strengths’ system:

• An innovative two-stage design: pre-condensation with compressor cooling and cooling with Peltier cells
• A borosilicate heat exchanger structure that reduces the contact time between the sample gas and the condensate, minimizing the solubilization of volatile components (e.g., SO₂) that would otherwise be lost in the liquid phase
• Compressor with high cooling capacity
• Display with dew point indication
• Portable and ergonomic design

Power supply: 230 Vac- 50Hz
Temperature: 0-45 °C 95 % UR
Dimensions: 400 x 415 x 193 mm
Cooling capacity: > 500 W – Tc 40°C, Te 10°C (+ 50 W con Peltier)
Weight: 15 kg (17 kg with Peltier)
